Equipment and machinery for heat treatment of products

Universal smoking and cooking chamber for 3 trolleys

(01) services

«TECHNOWOOD» — are solutions that work. Your technological partner in the world of heat treatment and food processing equipment

Universal smoking and cooking chamber for 3 trolleys

15

Number of countries to which we supply our equipment

The smoking and cooking chamber is designed for automatic smoking and heat treatment of meat, meat products, poultry, fish and dairy products.

The technological process is controlled by the SIEMENS control system (100 programs, 100 steps), which ensures automatic operation of the thermal smoking chamber, the software allows for any type of control of the process phases (browning, drying, dry and wet smoking, cooking, finishing), as well as creating various user programs with different parameters (temperature, humidity, time, temperature in the core of the product, delta-t).

Calculate the cost

The smoking chamber is constructed of panel, the panel body is made of stainless steel AISI 304, the panels are filled with glass wool - Nobasil. At the request of the Customer, it can be filled with polyurethane foam.

TECHNO WOOD - when quality speaks for itself.

The warranty is 2 years. Delivery all over the world.

The smoke generator produces smoke that gives the products a unique flavor and aroma of meat products.

The thermal smoking chamber can be heated according to the customer's requirements: electric - gas - steam.


Characteristics

Calculate the cost
number of trolleys
alt

3

The size of the trolley
alt

1.0x1.0x1.95m

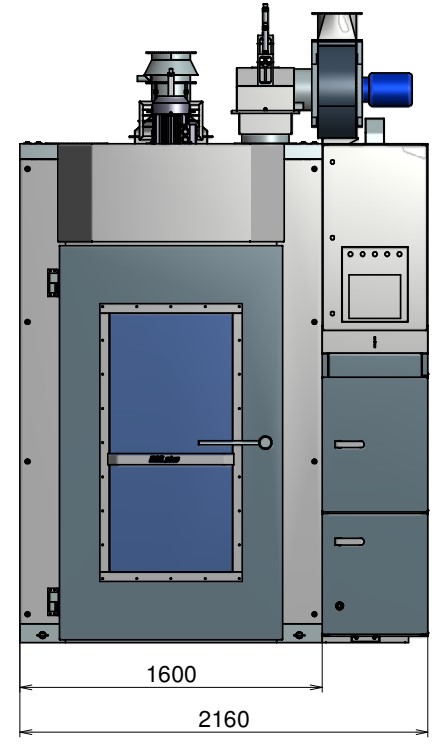

Width
alt

2160 mm

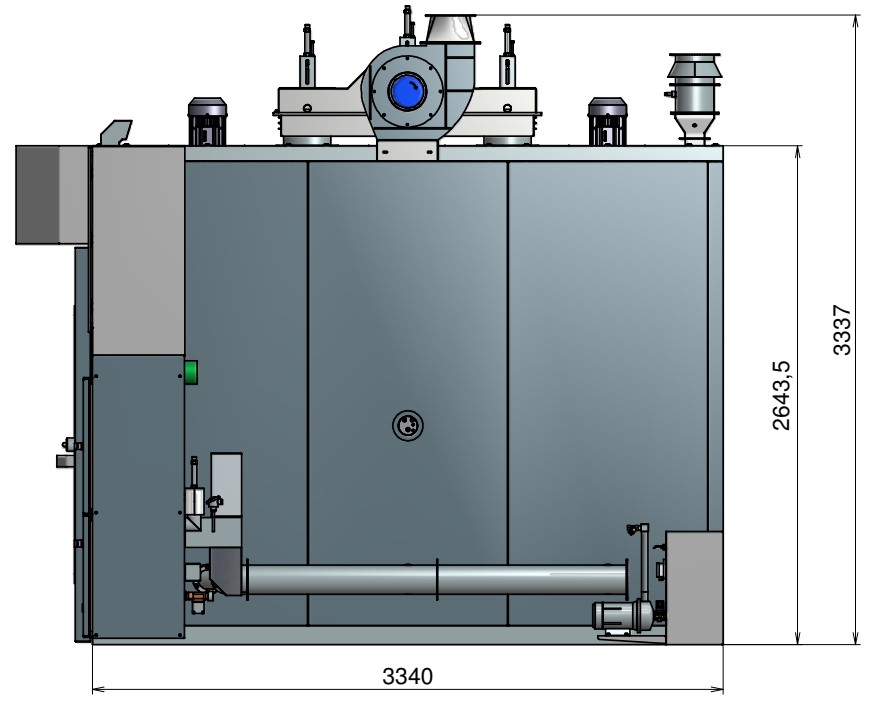

Length.
alt

3340 mm

Height.
alt

3337mm

Maximum temperature
alt

100С

Humidity control
alt

30-98%

Fresh air inlet flap
alt

Ø200

Electrical connection
alt

15 kW

Power of electric heaters (for electric chamber)
alt

78 kW

Air connection
alt

G1/2", 0.4-0.6 MPa

Connection to water
alt

G1/2", 0.4 MPa


alt
