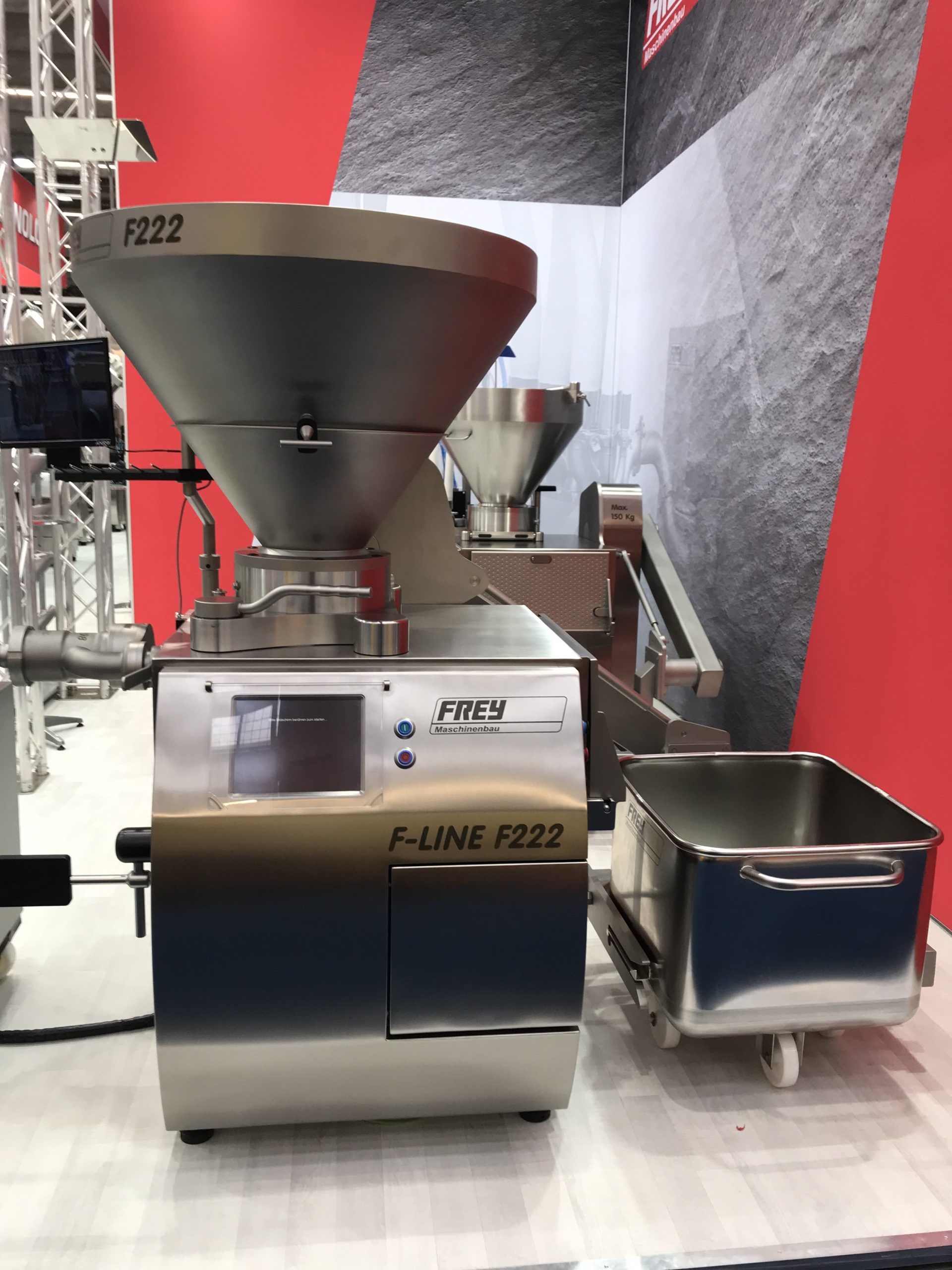

The F-LINE F222 vacuum syringe is designed for twisting, portioning and continuous filling of all types of shells.
The loading funnel, racks and machine body are made entirely of stainless steel, which increases the service life of the vacuum syringe. This machine is easy to operate, fully automated, and has a user-friendly LCD display with product information.
PARAMETERS: - Filling capacity up to approx. 6200 kg/hour; - Machine body and hopper made entirely of stainless steel; - Massive hopper, approx. 300 liters; - Filling pressure up to max. approx. 55 bar; - Digitally controlled vacuum system; - Electronic locking step; - Vacuum pump, 21 m³/h; - Total power consumption: max. 18.3 kW; - AC, 400 volts, 50 Hz; - Touch control system from FREY, TC 266 (optional TC 733); - Control with industrial computer; - 12-inch thin-film color display (800x600 pixels); - Intuitive operation by touching the display (touch control); - CAN bus for high-speed data exchange with enabled devices; - Ethernet interface; - USB interface; - Portioning range: 5 - 100.000 g (5 - 999 g in 0.1 g increments); - Portioning speed: max. 1000 portions/min; - Possibility of stepless selection of ramp and pause time; - Flow measurement, counter in pieces, shutdown by quantity in pieces; - Remaining mass retraction and portion addition for 1st portion; - Fault indicator, memory device for 200 filling programs including program for cooked sausage; - Electronic pulse control for the clipper.
At the factory, the machine can be equipped with a hydraulic lift for a standard 200-liter loading trolley.
Our company provides turnkey delivery of equipment: delivery, customs clearance, installation, personnel training and warranty coverage.
The warranty is 2 years. Delivery all over the world.
The F-LINE F222 model has a high-speed servo rotator. It provides the highest accuracy and speed of twisting.
Frey syringes are made of food grade stainless steel AISI 304.
