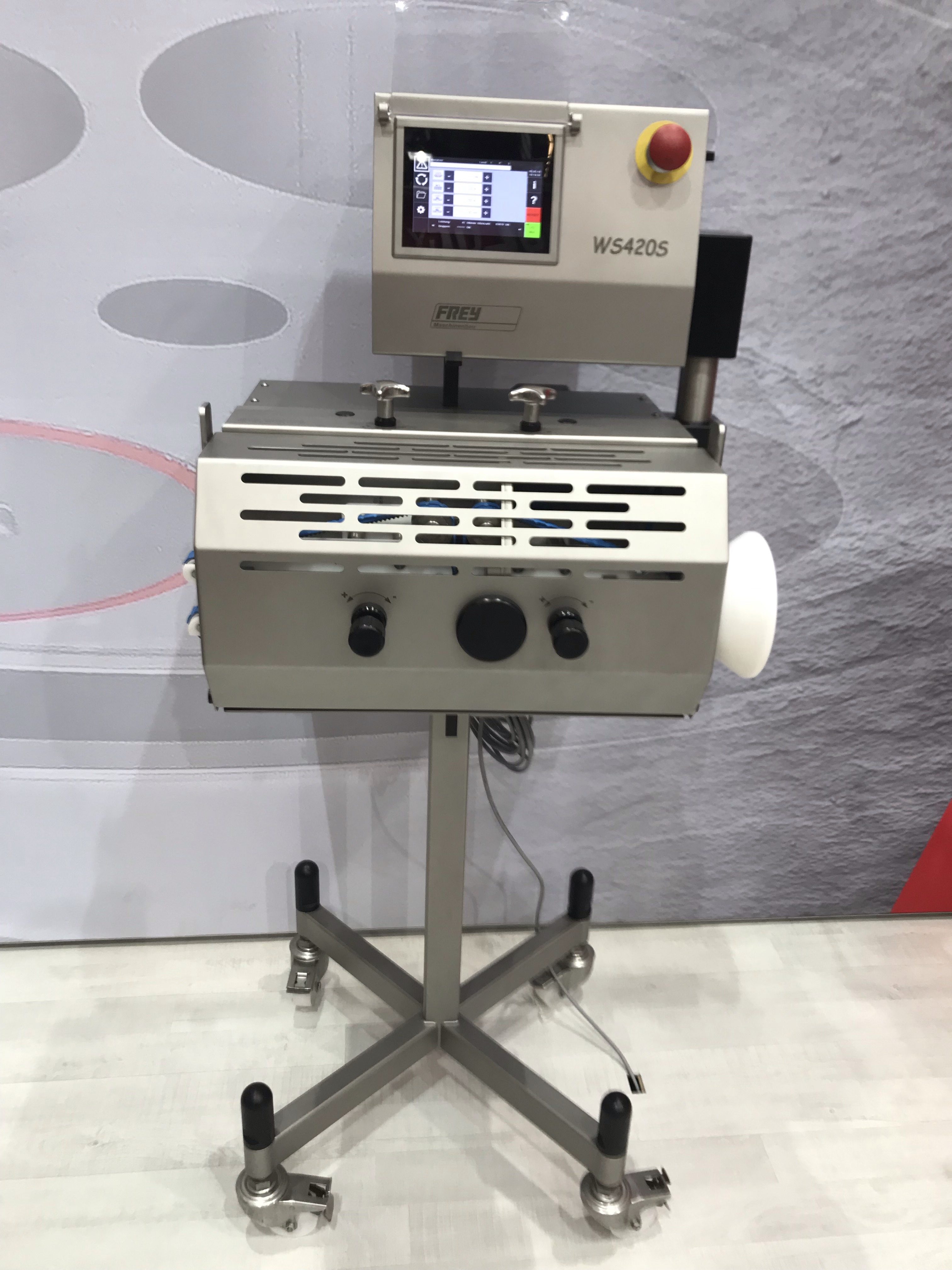

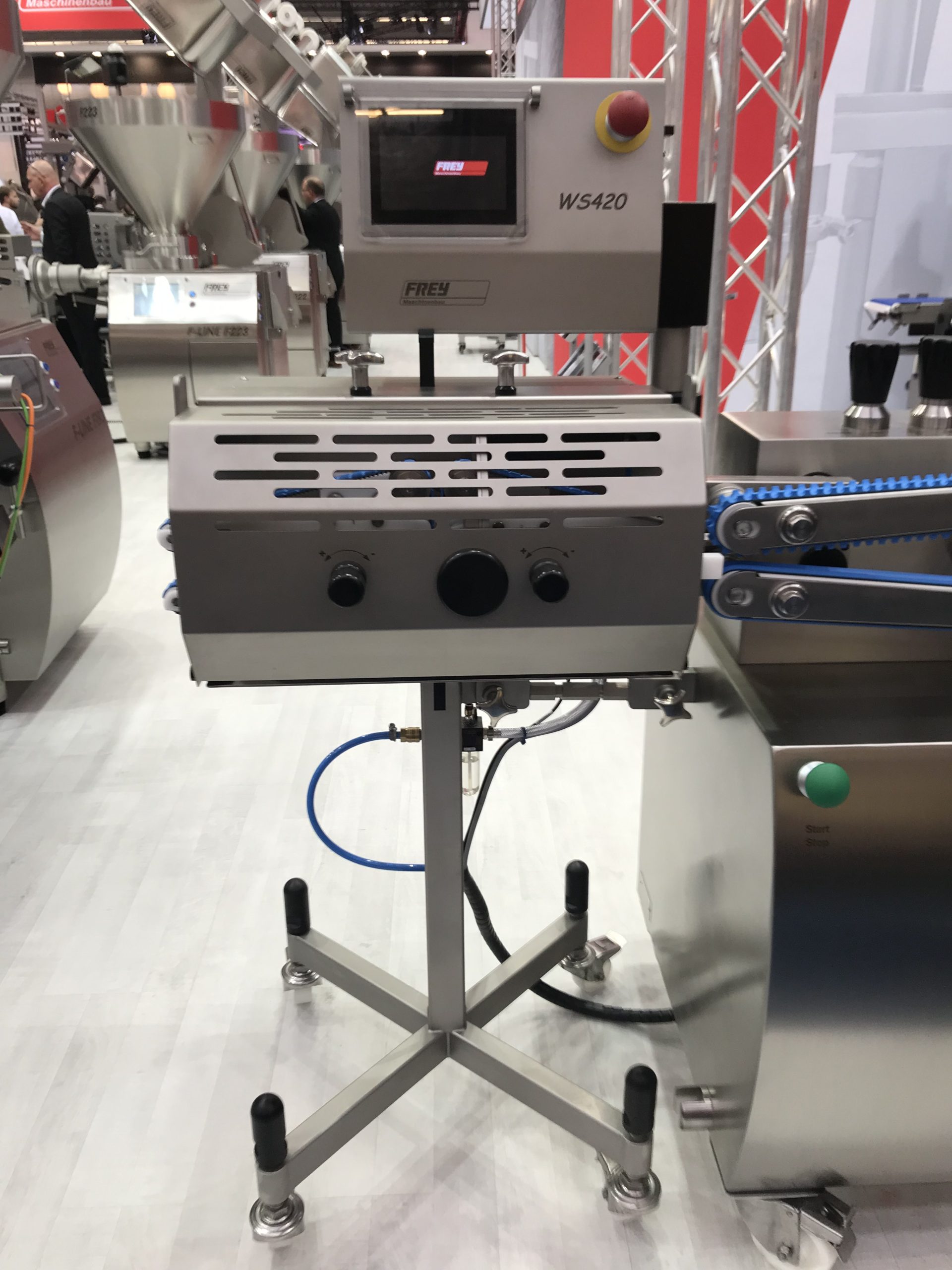

Sausage garland cutting machine type WS420 is designed to work with fresh, cooked, smoked and raw products in natural, collagen and cellulose casings. The WS420 is characterized by its high performance and precise cutting. The mechanical scissors operate in a variable mode. Each move corresponds to a cut. The product is fed through a large hopper that automatically centers the product.
Benefits for WS420 users: - Low space requirements for a compact size set; - Continuous cutting; - Precise cutting due to easy cutting position setting; - Simple product pick-up with automatic centering; - Easy cleaning; - Suitable for use in automated filling and packaging lines.
Description of functions: - continuously variable belt speed; - ability to set belt acceleration; - freely selectable cutting sequence 0...99; - memory for 99 cutting programs; - quantity counter; - diagnostic program.
FREY has been successfully operating in the piston and vacuum filling machine market for over 75 years and always offers its customers maximum benefit.
Our company provides turnkey delivery of equipment: delivery, customs clearance, installation, personnel training and warranty coverage.
The warranty is 2 years. Delivery all over the world.
Technical characteristics: Control panel - 5.7'' TFT color display; The maximum cutting speed is 420 pcs/min; The diameter of the sausages is 14-43 mm; The length of sausages is >25 mm; The maximum speed of the belts is 45 m/min; Compressed air - min. 6 bar; Compressed air connection - DIN ISO8573-1 Klasse 2; Air consumption (at 6 bars at max. cutting speed) - 6 liters/min; Power consumption is 1.0 kW; The voltage is 230 V, 50/60 Hz; The weight is 70 kg; The working height is 900×1050 mm; Dimensions with housing (l x w): 440×550×1472mm The machine body and electrical cabinets are made entirely of stainless steel.
Sausage string cutting machine type WS420 is made of food grade stainless steel AISI 304.
