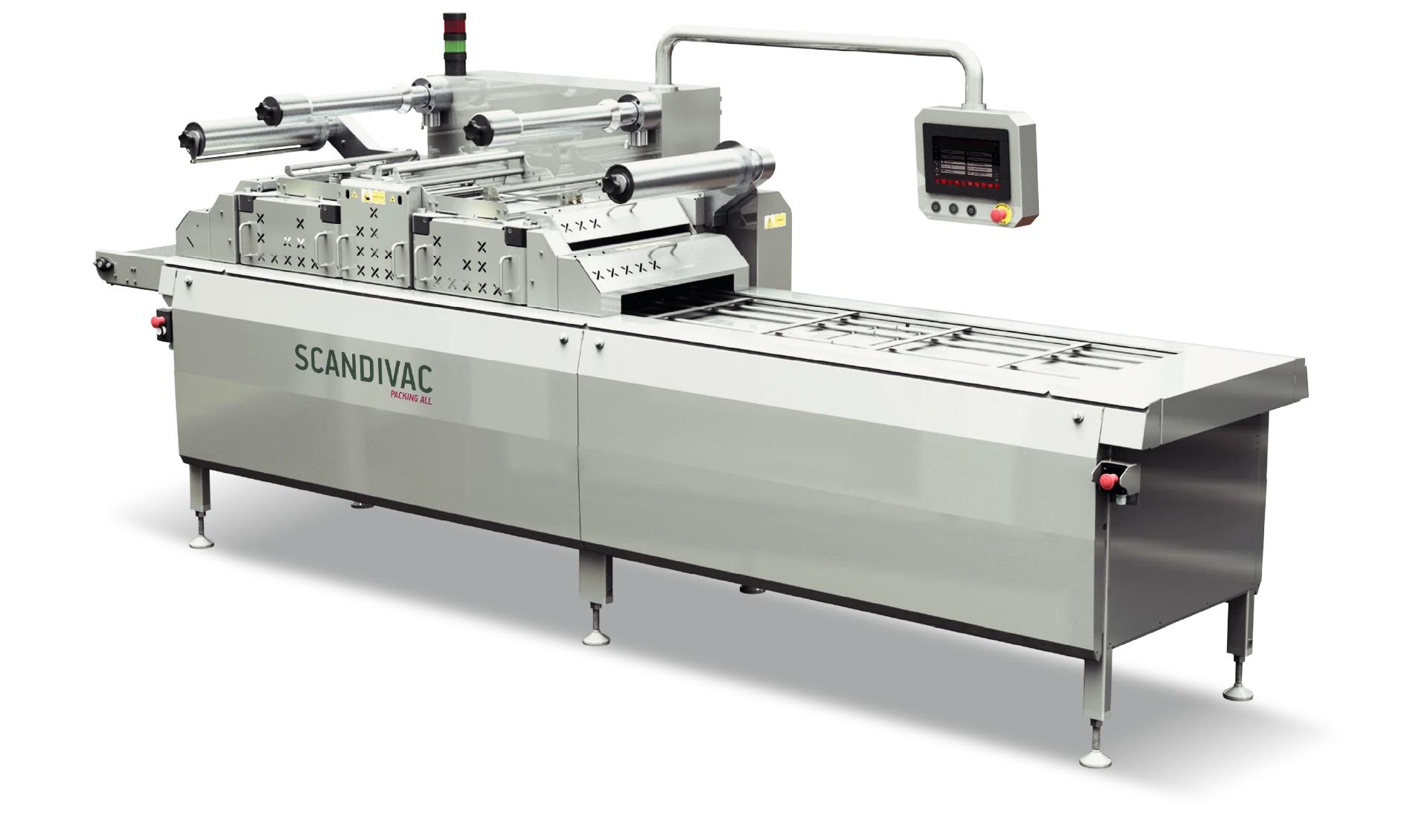

The SC200TA machine is designed to achieve higher production speeds and therefore result in higher packaging capacities. Its flexible tooling system allows the die to be configured as a 1-way, 2-way or up to a 3-way setup depending on tray size and production requirements. This versatility makes it an excellent choice for medium to large enterprises looking to increase efficiency without compromising quality. Machines with one or two stations are available.
An automatic tray sealer is a production process in which product is loaded into a pre-formed tray, which is then transported by a chain conveyor and sealed with a top film - all within a continuous production cycle.

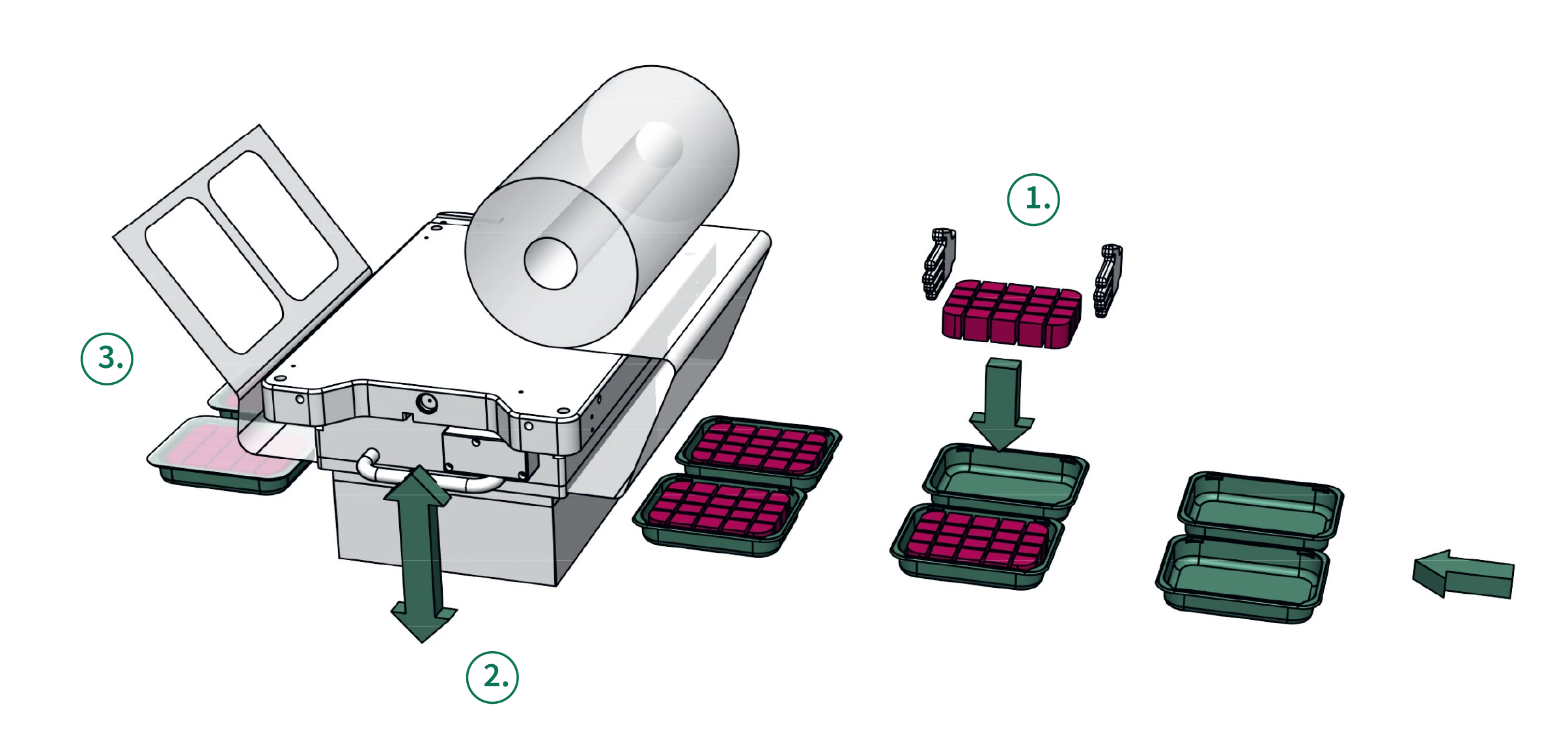

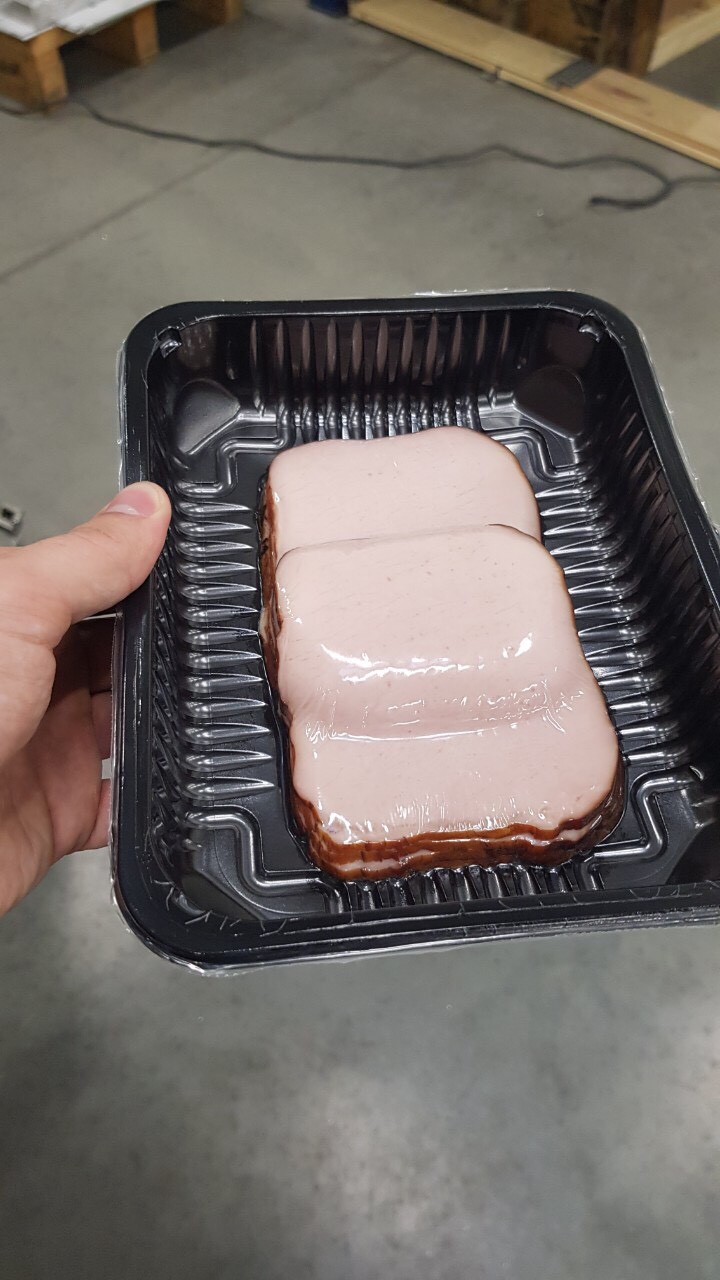

1. The product is placed manually or automatically into the ready-made trays. 2. The product trays are sealed. If required, a protective gas is added, either a vacuum or the SKIN option is used. 3. The sealed trays are ready for removal. The machine is made of stainless steel for reliable fastening of systems, mechanisms and safe transportation of equipment. Controls from SMC Pneumatics, Schneider Electric, Busch and other manufacturers.
The format of the trays is selected individually according to customer requirements.
Our company delivers equipment to customers on a turnkey basis: consultation, delivery, customs clearance, installation, staff training, and warranty coverage.
The warranty is 2 years. Delivery all over the world
PARAMETERS Machine weight: 850 kg/1340* kg Machine dimensions: 2055 x 1122 x 1790 mm 3400 x 1122 x 1790 mm Electrical parameters: 400V-3F-50Hz, 220V-3F-60Hz Compressed air: 6 - 7 bar Shielding gas: 2 - 6 bar

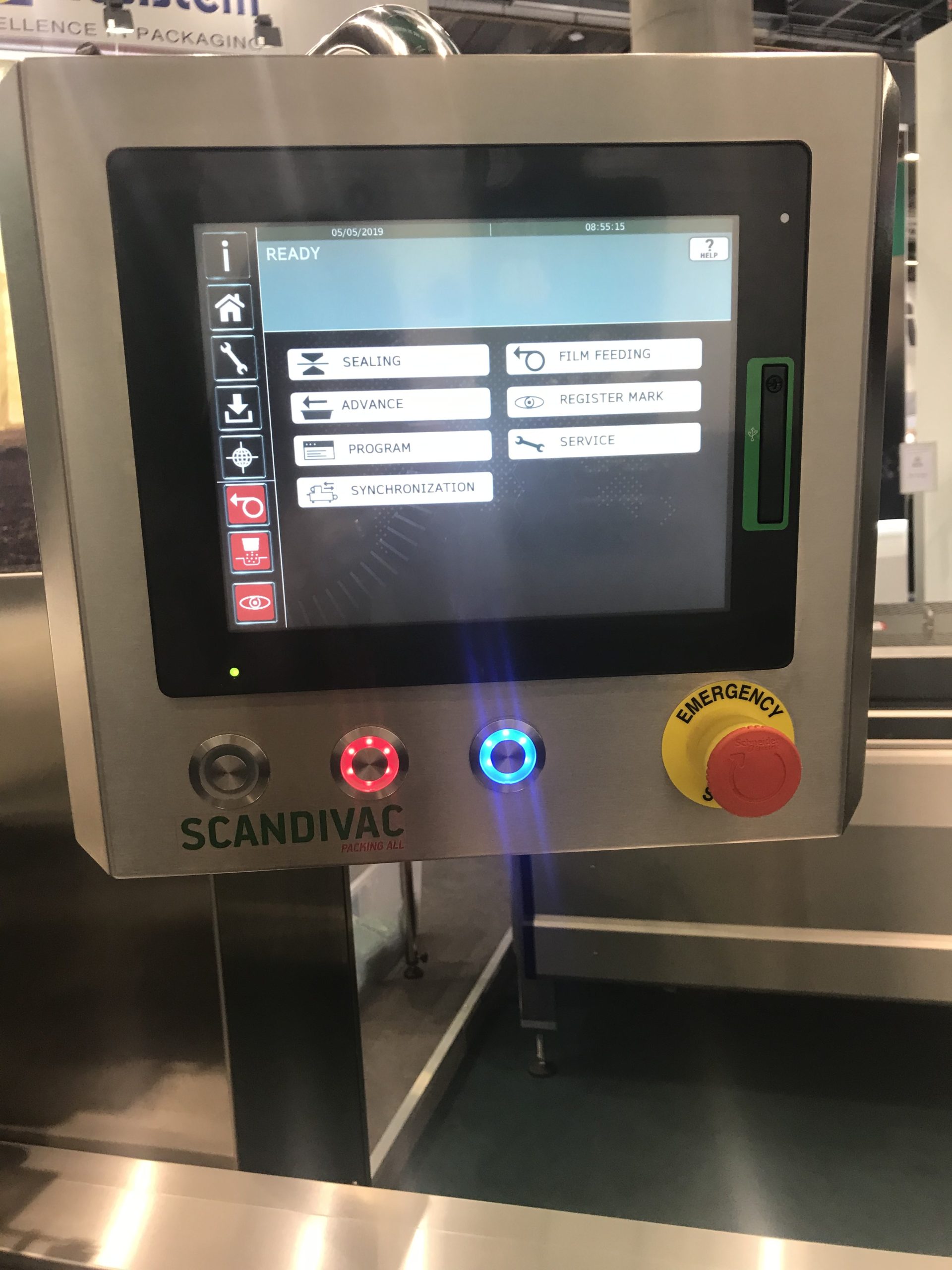

PARAMETERS: - Photocell for printing film - Liquid separator in vacuum line - Particulate filter for vacuum pump - MAP with O2>21% (oxygen safe vacuum pumps) - Integrated gas flash system for two different gas mixtures for easy access and selection via HMI - Belt conveyor diverting - Synchronization with additional equipment: automatic tray feeder, dosing system, printer, labeling system, etc. etc. - Autonomous water cooling - Tool changer and storage trolley
