The Spanish company FINOVA develops and manufactures a high-tech, automated cutting system for meat products.
The SliceFil-660 series of automatic slicers is characterized by high productivity and versatility, which is why they are recommended for use in enterprises with a large volume of sausage, ham or cheese production. The SliceFil-660 features automated product loading and an advanced system of 3 independent grippers that ensure high weight accuracy of each sliced package.
Features: Orbital and circular rotation slicing system with independent servo motors. It ensures that a wide range of products can be sliced and portioned with precise control. The automatic loading module ensures fast and efficient product feeding with minimal operator intervention. Length of the loading conveyor: 1200 mm.
Gripper - equipped with 1 gripper. The system can adjust the thickness of the slices cut from the stick product, which ensures the maximum number of portions with the correct weight, minimizing losses and rejects in the packages.

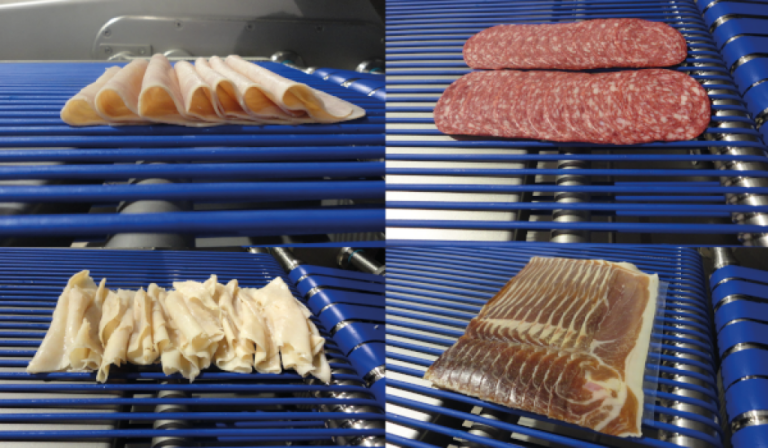

CHARACTERISTICS: 1. Pneumatic drive of vertical and horizontal clamping devices with automatic adjustment. 2. Automatically removes front and rear portion residue. 3. Portioning belt with automatic vertical inclination up to 70 mm high. 4. Detection and automatic correction of incomplete packages. 5. This machine can produce the following types of portioning: staggered, endless, staggered with paper interlayer (optional), multiple parallel rows, stacked rows, vertical stacking, staggered stacking, stacked with interlayer (optional), shaved chiffonade can be adjusted according to requirements, as well as the portion length. 6. It is equipped with a TCP/IP connection for remote monitoring of the machine. 7. The machine is designed to meet all the requirements of hygiene, safety and easy access to the main parts of the machine, which facilitates periodic cleaning and maintenance. 8. Durable construction made of AISI-304 stainless steel. 9. The machine is manufactured in accordance with European Directive 2006/42/EC.
The warranty is 2 years. Delivery all over the world.
Pick - equipped with 3 independent grippers. It consists of a set of independently operating grippers equipped with their own servo motor for more precise cutting of parallel products thanks to the information provided by the dynamic weighing system. The system can independently adjust the thickness of the slices to be cut for each bar, ensuring the maximum number of portions of the right weight, minimizing waste and rejected packages.
Gripper - Equipped with 2 independent grippers. Consists of a set of independently working grippers equipped with their own servo motor for more accurate slicing of parallel products thanks to the information provided by the dynamic weighing system. The system can independently adjust the thickness of the slices to be cut for each bar, ensuring the maximum number of servings of the right weight, minimizing waste and rejected packages.
