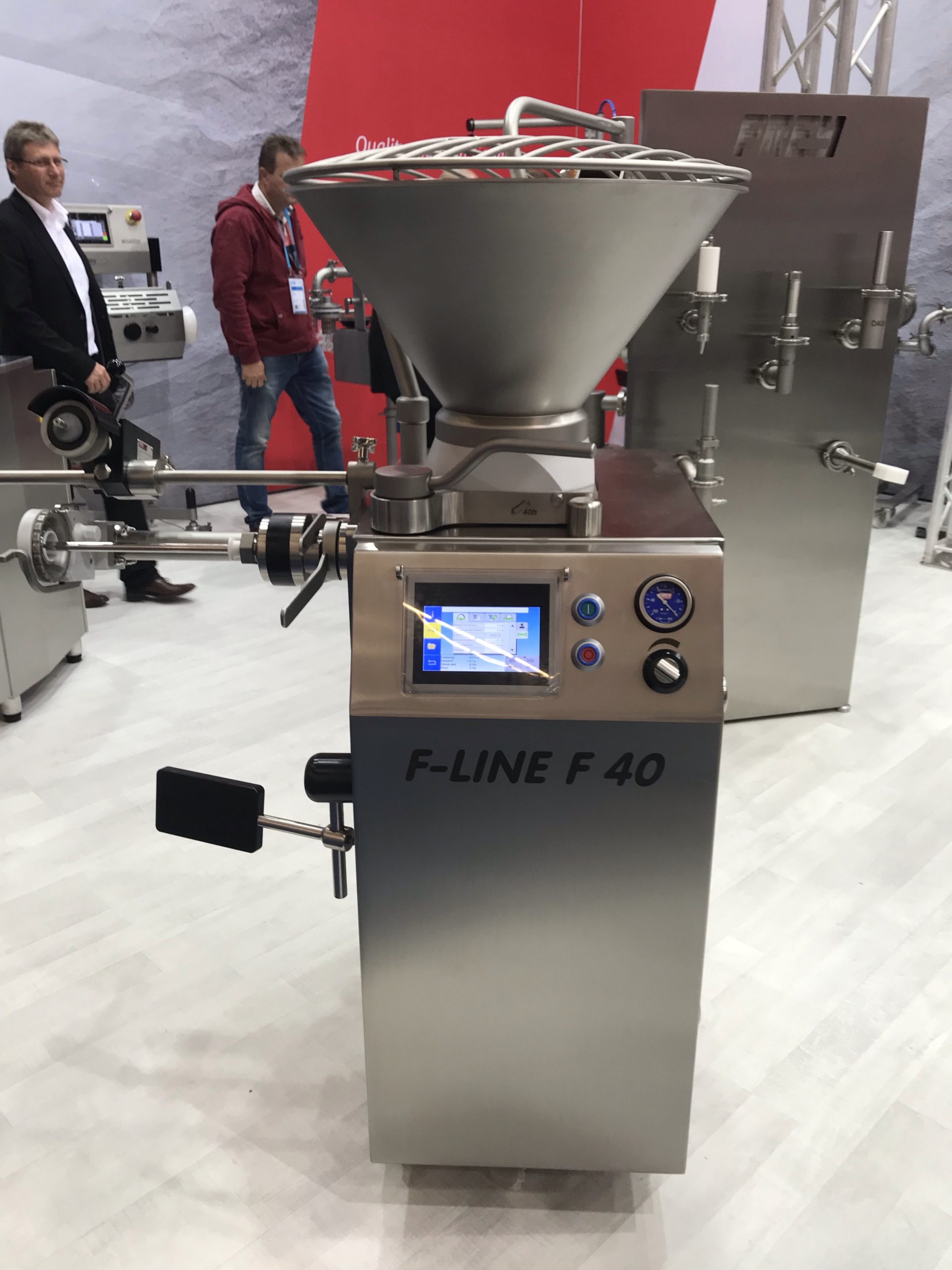

The F-Line F40 vacuum filling machine is designed for DIRECT FILLING, PORTIONING and TRIPPING with the ADG04 type twist drive and the E-drive of the High-Line model from FREY.
PARAMETERS: - Filling capacity up to - 1,900 kg/h. - Filling pressure approx. 30 Bar - Machine body and filling hopper made entirely of stainless steel - Hopper 40 l - Control system TC101 - Portioning range: 5 - 100.000 g (5 - 999 g in 0.1 g increments); - Portioning speed: max. 300 portions/min.; - Possibility of stepless selection of ramp and pause time; - Flow measurement, counter in pieces, shutdown by quantity in pieces; - Residual mass suction and portion addition for the 1st portion; - Memory device for 150 filling programs - Total power consumption: max. 3.9 kW - AC current, 400 volts, 50 Hz
The body is made of stainless steel for the food industry AISI 304.
Frey sausage syringes are able to meet the needs of enterprises of any size and perform all types of operations: direct filling, portioning, twisting.
Our company provides turnkey delivery of equipment: delivery, customs clearance, installation, personnel training and warranty coverage.
The warranty is 2 years. Delivery all over the world
FREY has been successfully operating in the piston and vacuum filling machine market for over 75 years and always offers its customers maximum benefit.
Frey offers a wide range of vacuum rotary syringes that are designed for filling both natural and artificial casings with minced meat.
