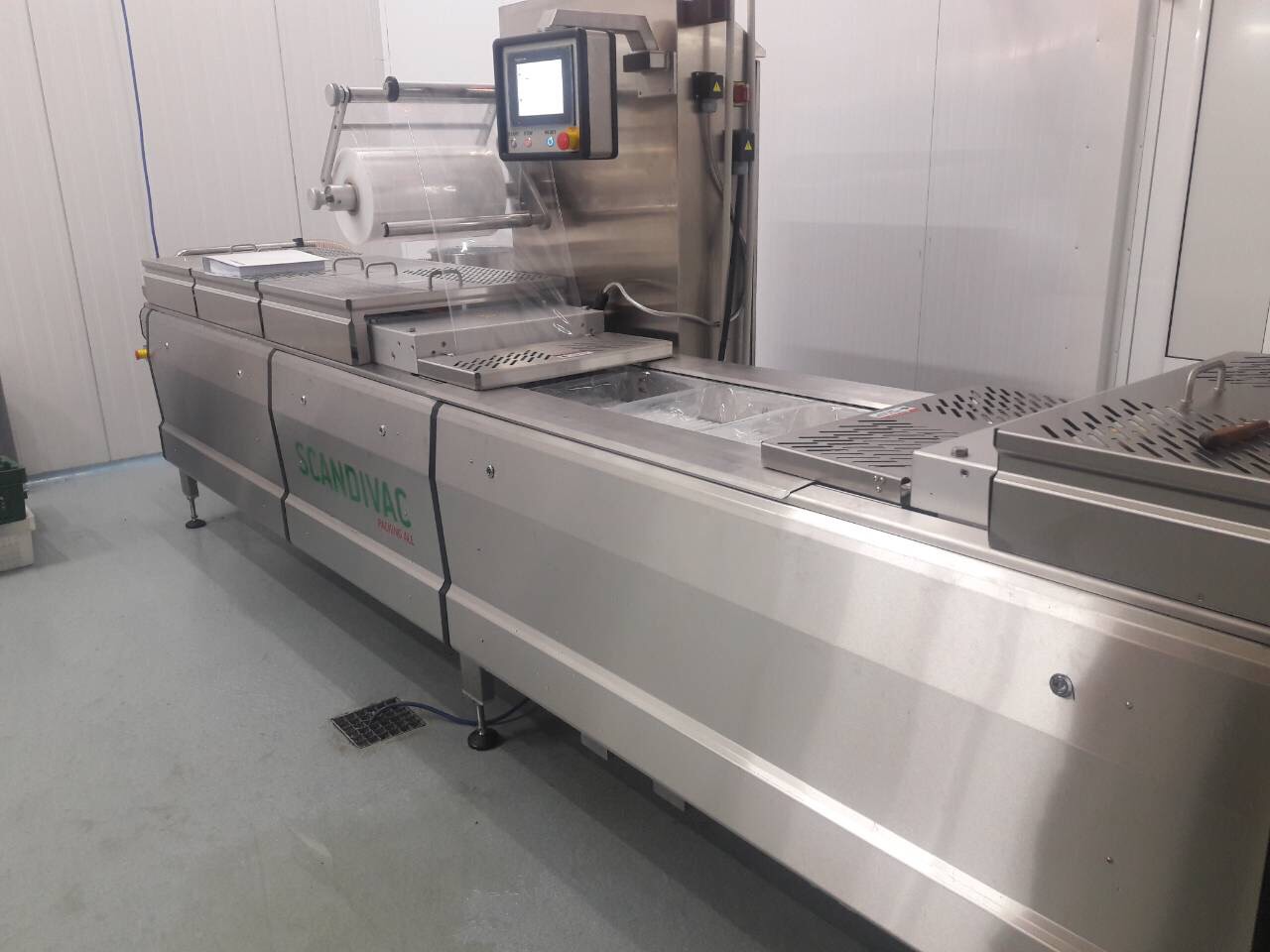

The SC140 is specifically designed for small and medium-sized businesses, offering reliable efficiency and consistent packaging quality, making it a great choice for businesses with limited space but high packaging standards.
SCANDIVAC machines are used for a wide range of product packaging: - Food - meat, fish, salad, cheese, vegetables and other product packaging - Medicine - medical product packaging. - Pharmaceutical products. - Consumer goods packaging
Design features: The robust stainless steel housing provides convenient transportation of the line and is a reliable support for the operating mechanisms; The robust housing of the guide chains ensures straight film pulling; The film gripper chain is corrosion-resistant; The chain servo drive is standard; The 4-point independent mold lifting mechanism with pneumatic drive and centralized lubrication nipples. The mechanism is made of stainless steel and the moving elements of the mechanism are equipped with bearings; Freely variable distance between the molds allows you to change the pitch of the molds, if necessary; Convenient access to all operating mechanisms thanks to replaceable side panels
Thermoforming is a production process in which the formation of packaging, loading of products into formed packages and sealing of packages with products are combined into a single production cycle.
Our company delivers equipment to customers on a turnkey basis: consultation, delivery, customs clearance, installation, staff training, and warranty coverage.
The warranty is 2 years. Delivery all over the world
Control system: - Electrical parts by Schneider Electric - Microprocessor by Allen-Bradley (USA):
Safety system: 1. A set of protective shields for molds and cutting tools (perforated stainless steel); 2. Magnetic sensors for stopping the line when removing the protective shields; 3. Protective fingers, freely suspended on the shaft, form a curtain that allows packaging to pass through, but mechanically blocks all penetration in the opposite direction; 4. Three emergency stop buttons for the line
